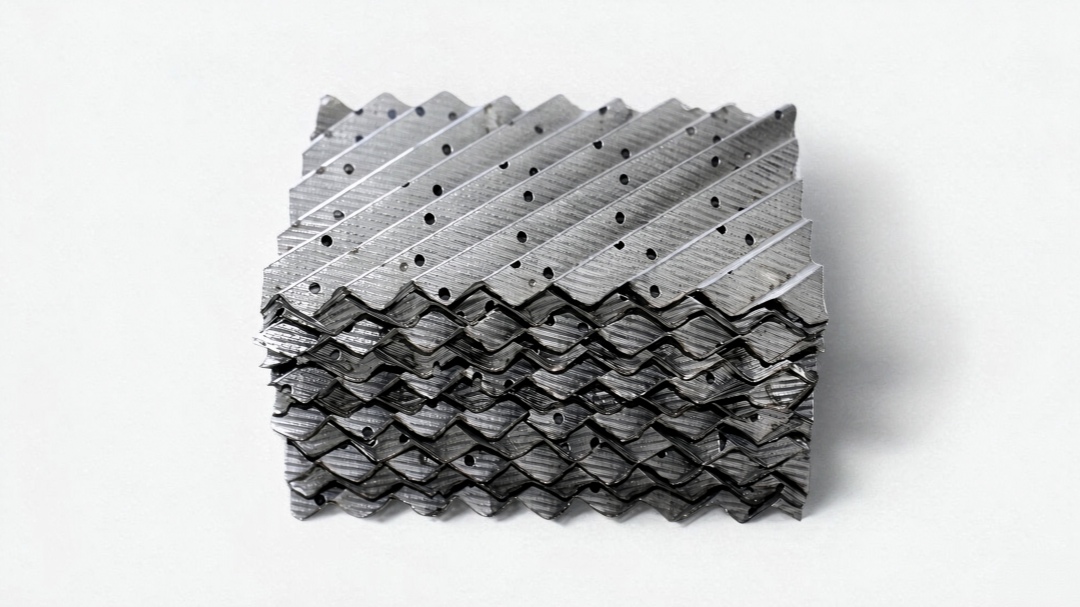

250Y Metal Structured Packing: Specs, Uses & Selection Guide

Technical Overview: The 250Y model is the industry workhorse, offering approximately 250 m²/m³ of specific surface area. It strikes the optimal balance between separation efficiency (HETP) and vapor handling capacity, making it the default choice for general distillation and absorption duties.

• 304 Stainless Steel: General organics, non-corrosive hydrocarbons. (Most economical)
• 316L Stainless Steel: Acidic environments, marine atmospheres, or services containing traces of chlorides.
• 410S Stainless Steel: High-temperature quenching (>400°C). Offers high strength but lower corrosion resistance.
• Monel/Inconel: Severe corrosive services involving high concentrations of H₂S or chlorides.

1. Ignoring the Distributor

250Y is highly sensitive to liquid distribution. A poor distributor causes channeling. Always use a high-quality pan distributor with ±5% flow uniformity.

2. Leveling Errors

Even a 1-degree tilt can cause vapor bypassing. Use a laser level during installation to ensure each layer is perfectly horizontal.

Q: When should I choose 250Y over 500Y?

A: Choose 250Y when you need higher capacity and lower pressure drop. Choose 500Y only when you need maximum separation efficiency in a very limited bed height.

Q: Can 250Y be cleaned in place (CIP)?

A: Yes. Its open structure allows for effective high-pressure water jetting or chemical solvent circulation.
